Machinery

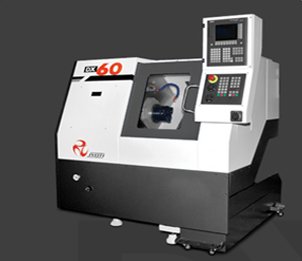

Model - DX60
Model - BGX100| Controller | Siemens808d | Siemens808d |
| Quantity | 2 nos | 2 nos |
| Capacity | ||
| Maximum swing over bed | 360mm | 250mm |
| Maximum turning length | 60mm | 150mm |
| Maximum job swing diameter | 145mm | 135mm |
| Standard turning length | 60mm | 100mm |
| Chuck size | 135mm | 135mm |
| Spindle | ||
| Spindle motor power | 3.6kw | 3.7kw |
| Make | Siemens | Servo |
| Spindle bore | 38mm | 28mm |
| Spindle nose | A₂4 | A₂4 |
| Maximum bar capacity | 29mm | 20mm |
| Spindle spped range | 50-6000 rpm | 50-3500 rpm |
| Full power speed range | 1500-4000 | 1500-3500 |
| Linear type tooling | ||
| No. Of tools for std. Dia. Range | 5 nos | 3 nos |
| Maximum boring bar capacity | 20mm | 32mm |
| Accuracy (as per vdi/dgq 3441) | ||
| Positioning uncertainity (p) | 0.007mm | 0.010mm |
| Repeatability (ps medium) | 0.005mm | 0.003mm |
Band Saw
Make : Laxmi
Capacity diameter : 7” inch
Quantity : 2 nos
Air Compressor (screw)
Make : Atlas Copco
Capacity : 16.5 cfm, 4 kva
Bar Feeder
Make : Far
Model : QF-12 hydraulic
Max. Bar diameter : 6-65mm
Max. Bar length : 1200mm
Center height : 870-1115mm
Reloading time for fresh bar : 25sec.
Positioning method : Turret stopper
